Polar and Cartesian products. More...

#include <RadarProductOp.h>

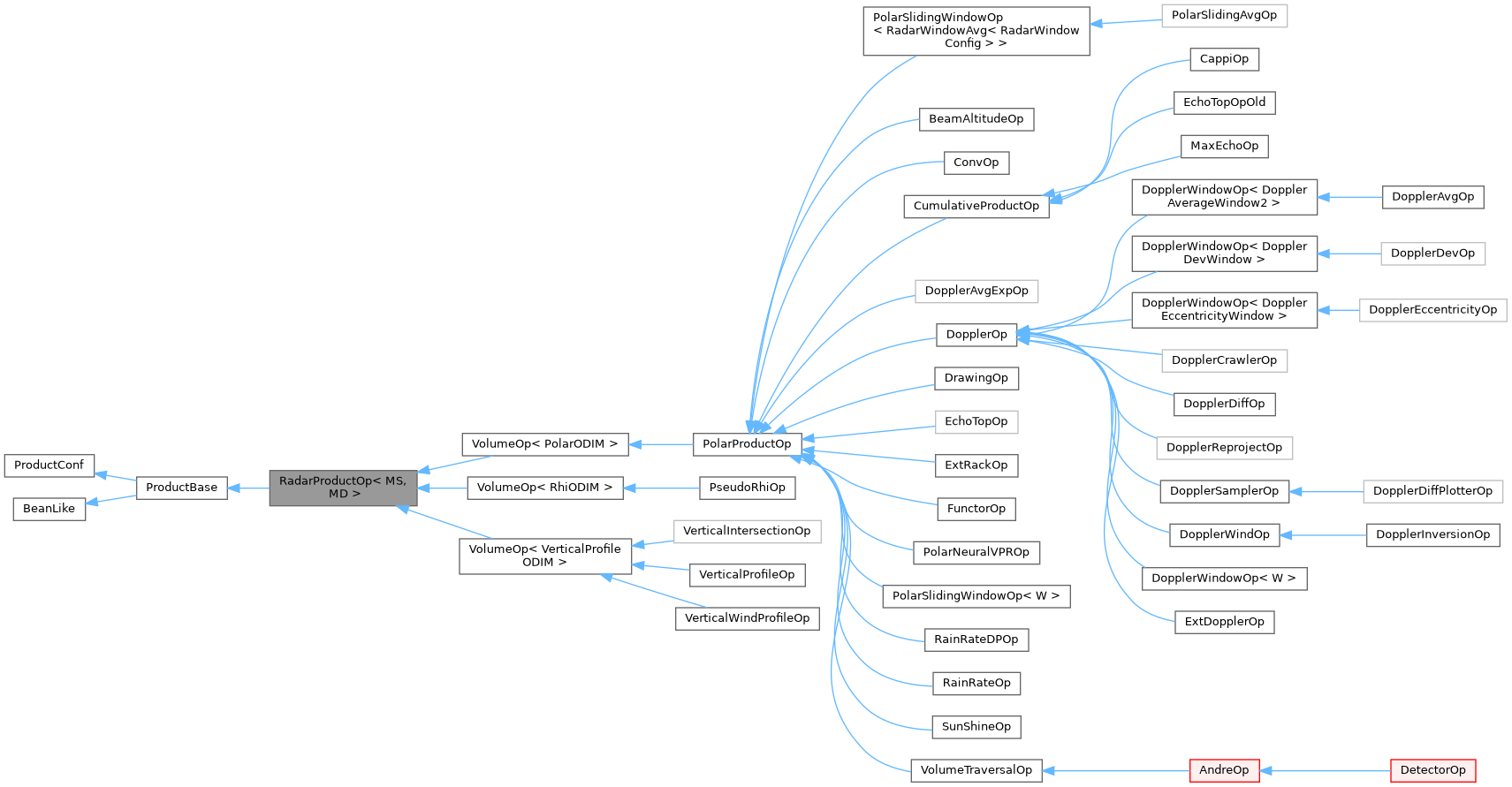

Inheritance diagram for RadarProductOp< MS, MD >:

[legend]

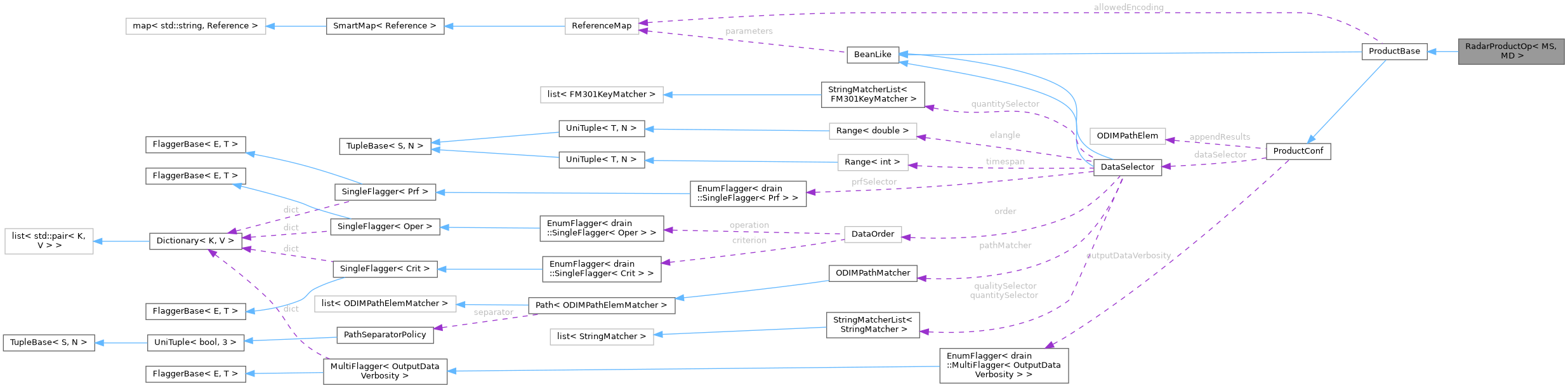

Collaboration diagram for RadarProductOp< MS, MD >:

[legend]

Public Types
typedef SrcType< MS const >	src_t
	Type of input, that is, source.

typedef DstType< MD >	dst_t
	Type of output, that is, destination.

Public Types inherited from ProductConf
enum	OutputDataVerbosity { DEFAULT =0 , INTERMEDIATE =1 , DEBUG =2 , QUALITY =4 }
	Determines if also intermediate results (1) are saved. See –store.

typedef drain::EnumFlagger< drain::MultiFlagger< OutputDataVerbosity > >	OutputFlagger

Public Types inherited from BeanLike
typedef ReferenceMap	map_t

Public Member Functions
	RadarProductOp (const std::string &name, const std::string &description)
	Default constructor.

	RadarProductOp (const RadarProductOp &product)

virtual const std::string &	getOutputQuantity (const std::string &inputQuantity="") const
	Returns the primary output quantity (ODIM `what:quantity` , like DBZH)

virtual void	processH5 (const Hi5Tree &src, Hi5Tree &dst) const

virtual void	computeSingleProduct (const DataSetMap< src_t > &srcSweeps, DataSet< dst_t > &dstProduct) const
	Traverse the data applicable for this product and create new, processed data (volume or polar product).

virtual void	processDataSet (const DataSet< src_t > &srcSweep, DataSet< DstType< MD > > &dstProduct) const
	Process the data of a single sweep and and write the result to given product.

virtual void	processData (const Data< src_t > &srcData, Data< dst_t > &dstData) const

Public Member Functions inherited from ProductBase
const std::string &	getLastArguments () const

virtual	~ProductBase ()
	Destructor.

void	setDataSelector (const DataSelector &selector)
	Copies the conditions of another selector.

const DataSelector &	getDataSelector () const
	Returns the data selector of this operator.

DataSelector &	getDataSelector ()
	Returns the data selector of this operator.

void	help (std::ostream &ostr=std::cout, bool showDescription=true) const
	Dumps the help of this operator.

const drain::ReferenceMap &	getAllowedEncoding () const
	Returns a map of encoding parameters that can be changed by the user.

virtual void	setEncodingRequest (const std::string &p)
	Set encoding parameters for the result: type,gain,offset,undetect,nodata.

void	setAllowedEncoding (const std::string &keys)

Public Member Functions inherited from ProductConf
	ProductConf ()
	Default constructor.

	ProductConf (const ProductConf &conf)
	Copy constructor.

Public Member Functions inherited from BeanLike
	BeanLike (const BeanLike &b)

	BeanLike (const std::string &name, const std::string &description="")

virtual const std::string &	getName () const
	Return the name of an instance.

virtual const std::string &	getDescription () const
	Return a brief description.

bool	hasParameters () const

template<class F >
F	getParameter (const std::string &p) const
	Gets a single parameter.

const map_t &	getParameters () const

map_t &	getParameters ()

template<class F >
void	setParametersFromEntries (const F &args)

void	setParameters (std::initializer_list< Variable::init_pair_t > args)
	Grants access to (if above hidden)

virtual void	setParameters (const std::string &p, char assignmentSymbol='=', char separatorSymbol=0)
	Sets comma-separated parameters in a predetermined order "a,b,c" or by specifing them "b=2".

template<class T >
void	setParameters (const std::map< std::string, T > &args)
	Set parameters.

template<class T >
void	setParameters (const SmartMap< T > &args)
	Set parameters.

void	setParameter (const std::string &p, const Castable &value)
	Sets a single parameter.

template<class T >
void	setParameter (const std::string &p, const VariableT< T > &value)

template<class F >
void	setParameter (const std::string &p, const F &value)
	Sets a single parameter.

template<class F >
void	setParameter (const std::string &p, std::initializer_list< F > value)
	Sets a single parameter.

BeanLike &	operator= (const BeanLike &b)

virtual std::ostream &	toStream (std::ostream &ostr, bool compact=true) const

Public Attributes
MD	odim
	The default data parameters for encoding output (the product).

Public Attributes inherited from ProductConf
DataSelector	dataSelector

std::string	targetEncoding
	How the (main) output is encoded.

ODIMPathElem	appendResults
	If set, appends outputs in an hdf5 structure instead of overwriting.

OutputFlagger	outputDataVerbosity = DEFAULT

Protected Member Functions
virtual void	setGeometry (const MS &srcODIM, PlainData< dst_t > &dstData) const =0
	Sets automagically the suitable dst parameters.

virtual void	initDst (const MS &srcODIM, PlainData< dst_t > &dstData) const
	initialises dst data by setting suitable ODIM metadata and geometry.

virtual void	setEncoding (const ODIM &srcODIM, PlainData< dst_t > &dstData) const
	Sets applicable encoding parametes (type, gain, offset, undetect, nodata) for this product.

void	setEncodingNEW (PlainData< dst_t > &dstData, const std::string quantity="", const std::string type="") const
	Sets applicable encoding parametes (type, gain, offset, undetect, nodata) for this product.

Protected Member Functions inherited from ProductBase
	ProductBase (const std::string &name, const std::string &description)
	Default constructor.

	ProductBase (const ProductBase &product)

void	storeLastArguments (const std::string &p) override
	Called after setParameters()

Protected Member Functions inherited from BeanLike
virtual void	updateBean () const
	Called after setParameters()

Additional Inherited Members
Static Public Member Functions inherited from ProductBase
static void	completeEncoding (ODIM &productODIM, const std::string &targetEncoding)
	Modifies encoding. If type is changed, resets scaling first.

static void	applyODIM (ODIM &productODIM, const ODIM &srcODIM, bool applyDefaults=false)
	Sets target quantity and encoding, if unset. If input odim.

static void	setRackVersion (drain::VariableMap &metadata)

Static Protected Member Functions inherited from ProductBase
static void	setODIMspecials (ODIM &productODIM)
	Sets target encoding.

Protected Attributes inherited from ProductBase
std::string	lastArguments

drain::ReferenceMap	allowedEncoding
	Defines which encoding parameters can be changed by the user from command line.

Protected Attributes inherited from BeanLike
const std::string	name

const std::string	description

map_t	parameters

Detailed Description

template<class MS, class MD>
class rack::RadarProductOp< MS, MD >

Polar and Cartesian products.

Template Parameters

MS	- input (source) metadata type: PolarODIM or CartesianODIM.
MD	- output (destination) metadata type: PolarODIM or CartesianODIM.

Member Function Documentation

◆ computeSingleProduct()

template<class MS , class MD >

void computeSingleProduct	(	const DataSetMap< src_t > &	srcSweeps,
		DataSet< dst_t > &	dstProduct
	)		const

virtual

Traverse the data applicable for this product and create new, processed data (volume or polar product).

The input data is stored in SweepMapSrc, as Map indexed with elevation angles, containing sweep data

typically reflectivity data (DBZH) but generally any parameter measured by radar. The applicable data is set by selector.quantity, typically in the constructor of a derived class.

Pick main product data and assign (modified) odim data

Reimplemented in EchoTopOp.

◆ getOutputQuantity()

template<class MS , class MD >

virtual const std::string & getOutputQuantity ( const std::string & inputQuantity = "" ) const

inlinevirtual

Returns the primary output quantity (ODIM what:quantity , like DBZH)

The ODIM quantity of this product

Parameters

defaultQuantity - input quantity or a quantity overriding default output quantity of this product

Reimplemented in DetectorOp, CumulativeProductOp, and EchoTopOpOld.

◆ processDataSet()

template<class MS , class MD >

void processDataSet	(	const DataSet< src_t > &	srcSweep,
		DataSet< DstType< MD > > &	dstProduct
	)		const

virtual

Process the data of a single sweep and and write the result to given product.

Notice:

several product data arrays may be generated
also quality field(s) may be added
overwriting original data may occur, if input data (src) is also given as output (dst); this is desired action esp. in anomaly removal

◆ processH5()

template<class MS , class MD >

void processH5	(	const Hi5Tree &	src,
		Hi5Tree &	dst
	)		const

virtual

Usually, the operator does not need groups sorted by elevation.

Main operation

Reimplemented in DataConversionOp< M >.

◆ setEncoding()

template<class MS , class MD >

void setEncoding	(	const ODIM &	srcODIM,
		PlainData< dst_t > &	dstData
	)		const

protectedvirtual

Sets applicable encoding parametes (type, gain, offset, undetect, nodata) for this product.

Determines output encoding based on

output data (parameters already set in dstData)
this->odim (values set in constructor and targetEncoding)
targetEncoding

See also

setGeometry Sets applicable encoding parametes (type, gain, offset, undetect, nodata) for this product. Determines output encoding based on

input data (srcODIM)
output data (parameters already set in dstData)
this->odim (values set in constructor and targetEncoding)
targetEncoding

setGeometry

This applies always.

◆ setEncodingNEW()

template<class MS , class MD >

void setEncodingNEW	(	PlainData< dst_t > &	dstData,
		const std::string	quantity = `""`,
		const std::string	type = `""`
	)		const

protected

Sets applicable encoding parametes (type, gain, offset, undetect, nodata) for this product.

Determines output encoding based on

output data (parameters already set in dstData)
this->odim (values set in constructor and targetEncoding)
targetEncoding

See also: setGeometry

Parameters

quantity	- if given, applied as a "template", standard quantity to be copied; also odim.type, if empty, is set.
type	- if given, odim.type is always changed
quantity	- if given, applied as a "template", standard quantity to be copied; also odim.type, if empty, is set.
type	- if given, odim.type is always changed

This applies always.

◆ setGeometry()

template<class MS , class MD >

virtual void setGeometry	(	const MS &	srcODIM,
		PlainData< dst_t > &	dstData
	)		const

protectedpure virtual

Sets automagically the suitable dst parameters.

Derives geometry for the resulting dst from three sources of parameters: the implicit operator parameters this->odim and the two function parameters

Parameters

srcODIM	- metadata of the incoming data
dstODIM	- metadata of the result (sometimes partially set).

Default implementation as an empty function, because some operators like VerticalProfileOp will not use?

Implemented in DataConversionOp< M >.

The documentation for this class was generated from the following file:

src/product/RadarProductOp.h
