MinMaxMethod Class Reference

DOC: Add class description. More...

#include <AccumulationMethods.h>

Inheritance diagram for MinMaxMethod:

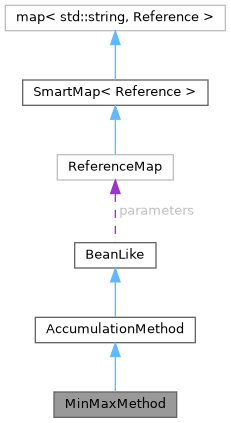

Collaboration diagram for MinMaxMethod:

Public Member Functions
virtual void	add (AccumulationArray &accArray, const size_t i, double value, double weight) const override
virtual void	extractValue (const AccumulationArray &accArray, const AccumulationConverter &coder, Image &dst, const drain::Rectangle< int > &crop={0, 0, 0, 0}) const override
	Retrieve the accumulated values from the accumulation matrix back to a data array.
virtual void	extractDev (const AccumulationArray &accArray, const AccumulationConverter &coder, Image &dst, const drain::Rectangle< int > &crop={0, 0, 0, 0}) const override
	Retrieves the standard deviation of the accumulated values.
Public Member Functions inherited from AccumulationMethod
	AccumulationMethod (const AccumulationMethod &method)
virtual void	add (AccumulationArray &accArray, const size_t i, double value, double weight, unsigned int count) const
	Adds 'count' copies of a weighted value to the accumulation array.
virtual void	extractWeight (const AccumulationArray &accArray, const AccumulationConverter &coder, Image &dst, const drain::Rectangle< int > &crop={0, 0, 0, 0}) const
	Retrieves the (average) weight of the accumulated values.
virtual void	extractCount (const AccumulationArray &accArray, const AccumulationConverter &coder, Image &dst, const drain::Rectangle< int > &crop={0, 0, 0, 0}) const
	Retrieves the count of values accumulated.
Public Member Functions inherited from BeanLike
	BeanLike (const BeanLike &b)
	Copy constructor. Re-links parameters to the member variables of this (new) instance.
	BeanLike (const std::string &name, const std::string &description="")
	Constructor.
virtual const std::string &	getName () const
	Return the name of an instance.
virtual const std::string &	getDescription () const
	Return a brief description.
bool	hasParameters () const
	Tells if any parameters have been linked (registered) for this bean.
template<class F >
F	getParameter (const std::string &p) const
	Gets a single parameter.
const map_t &	getParameters () const
	Returns the parameter map (const access).
map_t &	getParameters ()
	Returns the parameter map.
template<class F >
void	setParametersFromEntries (const F &args)
	Sets several parameters at once from a sequence of key-value pairs.
void	setParameters (std::initializer_list< Variable::init_pair_t > args)
	Grants access to (if above hidden)
virtual void	setParameters (const std::string &p, char assignmentSymbol='=', char separatorSymbol=0)
	Sets comma-separated parameters in a predetermined order "a,b,c" or by specifing them "b=2".
template<class T >
void	setParameters (const std::map< std::string, T > &args)
	Set parameters.
template<class T >
void	setParameters (const SmartMap< T > &args)
	Set parameters.
void	setParameter (const std::string &p, const Castable &value)
	Sets a single parameter.
template<class T >
void	setParameter (const std::string &p, const VariableT< T > &value)
template<class F >
void	setParameter (const std::string &p, const F &value)
	Sets a single parameter.
template<class F >
void	setParameter (const std::string &p, std::initializer_list< F > value)
	Sets a single parameter.
BeanLike &	operator= (const BeanLike &b)
	Assigns the parameter values of another bean (by key) to this one's own parameters.
virtual std::ostream &	toStream (std::ostream &ostr, bool compact=true) const
	Prints the name, description and current parameter values.

Additional Inherited Members
Public Types inherited from BeanLike
typedef ReferenceMap	map_t
	Reference map type used to store this bean's parameters (name -> linked variable).
Protected Member Functions inherited from AccumulationMethod
	AccumulationMethod (const std::string &name, const std::string &description)
Protected Member Functions inherited from BeanLike
virtual void	storeLastArguments (const std::string &p)
	Called after setParameters()
virtual void	updateBean () const
	Called after setParameters()
Protected Attributes inherited from BeanLike
const std::string	name
	Name of this bean, typically also the name of the (derived) class.
const std::string	description
	Brief, human-readable description of this bean.
map_t	parameters
	Parameters (name -> linked variable), typically linked to member variables of the derived class.

Detailed Description

DOC: Add class description.

Member Function Documentation

add()

void add ( AccumulationArray &  accArray, const size_t  i, double  value, double  weight  ) const

overridevirtual

Collect minimum and maximum values to accArray.data and accArray.data2, respectively

Reimplemented from AccumulationMethod.

extractDev()

void extractDev ( const AccumulationArray &  accArray, const AccumulationConverter &  coder, Image &  dst, const drain::Rectangle< int > &  crop = {0,0,0,0}  ) const

overridevirtual

Retrieves the standard deviation of the accumulated values.

dst - target array in which the values are stored.

gain - scaling coefficient applied to each retrived value

offset - additive coefficient applied to each retrieved value

NODATA - if bin count is undetectValue that is, there is no data in a bin, this value is applied.

Reimplemented from AccumulationMethod.

extractValue()

void extractValue ( const AccumulationArray &  accArray, const AccumulationConverter &  coder, Image &  dst, const drain::Rectangle< int > &  crop = {0,0,0,0}  ) const

overridevirtual

Retrieve the accumulated values from the accumulation matrix back to a data array.

In this context, the "value" refers to the main object of interest (measurement, prediction etc).

dst - target array in which the values are stored.

gain - scaling coefficient applied to each retrived value

offset - additive coefficient applied to each retrieved value

NEGLIBLE - if value is less than minValue (or weight is undetectValue but bin count non-undetectValue), this value is applied.

NODATA - if bin count is undetectValue that is, there is no data in a bin, this value is applied.

Reimplemented from AccumulationMethod.

---

The documentation for this class was generated from the following files:

• src/drain/image/AccumulationMethods.h
• src/drain/image/AccumulationMethods.cpp
